SPECIFICATIONS
Frameset | |
Frame | Haro Solum 6061 Alloy w/ Rider-Tuned Geometry, New Dropout w/ Integrated Kickstand Mount |
Fork | SR Suntour NEX HLO 63mm travel w/ hydraulic lockout |
Colors | Teal/White |
Drivetrain | |
Cranks | Shimano TY-301 48/38/28t |
Pedals | VP nylon body w/ steel cages |
Chain | KMC Z51 |
Bottom Bracket | Shimano sealed cartridge |
Front Derailleur | Shimano Tourney FD-TY510 Dual Pull |
Rear Derailleur | Shimano Altus RD-M310-L |
Derailleur Shifter | Shimano ST-EF-500 3x7-spd |
Freewheel/Cassette | Shimano HG-200 7-spd cassette 12-32T |
Wheels | |
Tires | H-5113 700 x 38c |
Wheels/Rims | 700c alloy double wall 28h |
Braking System | |
Brakes | Tektro Aries MD-M280 mechanical disc, 160mm rotors |
Brake Levers | Shimano ST-EF-500 |
Other Components | |
Grips | Haro Dual Sport |
Handle Bar | Pivit alloy 25mm riser bar 31.8mm 9 degree sweep |
Stem | Pivit melt forged |
Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
Saddle | Haro Dual Sport |
Seat Post | Men's: Pivit alloy micro adjust 27.2mm |
Seat Clamp | Alloy quick Release, 31.8mm |

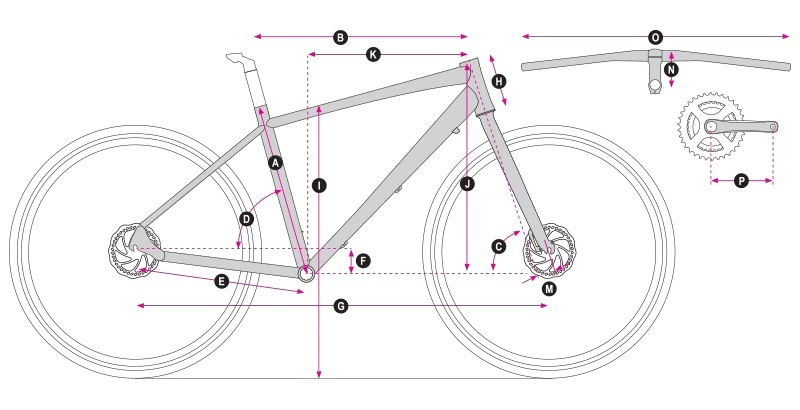

GEOMETRY
SIZE |
14 ST |
|
15 ST |
|
|
|
A. Seat Tube (C-T) |
355 |
|
406 |
|
|
|
B. Top Tube (Effective) |
550 |
|
572 |
|
|
|
C. Head Tube Angle |
70 |
|
70 |
|
|
|
D. Seat Tube Angle |
74 |
|
74 |
|
|
|
E. Chainstay Length |
445 |
|
445 |
|
|
|
F. BB Drop |
60 |
|
60 |
|
|
|
G. Wheelbase |
1058 |
|
1081 |
|
|
|
H. Head Tube Length |
105 |
|
115 |
|
|
|
I. Standover |
640 |
|
642 |
|
|
|
J. Stack Height |
587 |
|
596 |
|
|
|
K. Reach |
381 |
|
400 |
|
|
|
L. Fork Height |
468 |
|
468 |
|
|
|
M. Fork Offset |
42 |
|
42 |
|
|
|
N. Stem Length |
70 |
|
90 |
|
|
|
O. Bar Width |
620 |
|
620 |
|
|
|
P. Crank Length |
170 |
|
170 |
|
|
|
