TEAMMACHINE SLR02 DISC : 2020
โดย pap , 26/08/2019 16:14 , ผู้ชม 4630 , หัวข้อ : Product Review

SLR02 DISC 2020-1


TEAMMACHINE SLR02 DISC รวดเร็ว แข็งแกร่ง ฉีกทุกข้อจำกัด

            ล้ำหน้าทางด้านนวัตกรรมจักรยาน  นำเสนอมุมมองการออกแบบระดับสูง ที่บ่งบอกถึงมาตรฐานความเป็นสวิส ได้อย่างลงตัวในทุกสัดส่วนการใช้งาน ด้วยโปรแกรมออกแบบ ACE  ที่ให้ค่าการคำนวณอย่างลึกซึ้ง สำหรับการหาน้ำหนัก รูปทรงที่เหมาะสมความสติฟท์ที่ดีขึ้น และความนุ่มนวลในขณะที่ปั่นด้วยกำลังความเร็ว โดดเด่นด้วยเทคโนโลยี TCC ที่ตอบสนองต่อการถ่ายแรงได้อย่างไร้ขีดจำกัด  พร้อมรองรับระบบ Disc brake ที่ช่วยให้คุณสามารถควบคุมรถได้อย่างมั่นใจ ปลอดภัยทุกจังหวะการเบรก

SLR02 DISC 2020-2

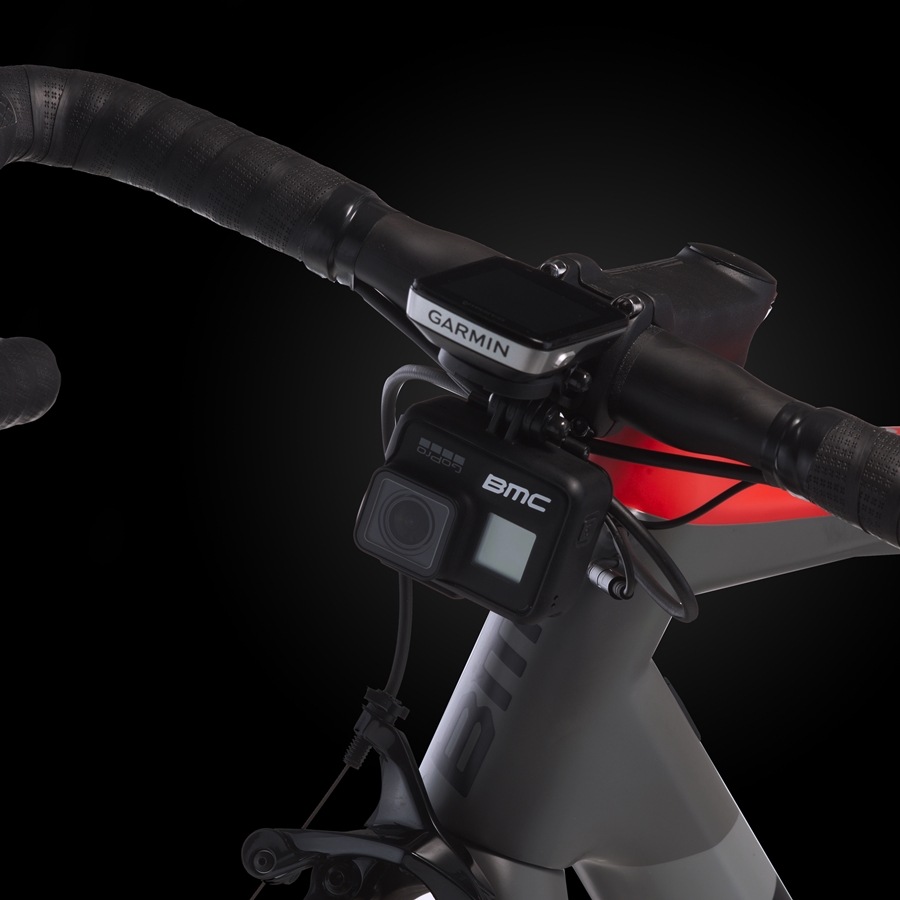

Integrated Device Mount : จุด Cockpit สามารถติดตั้งอุปกรณ์ GPS/กล้อง ได้อย่างกลมกลืน

SLR02 DISC 2020-3

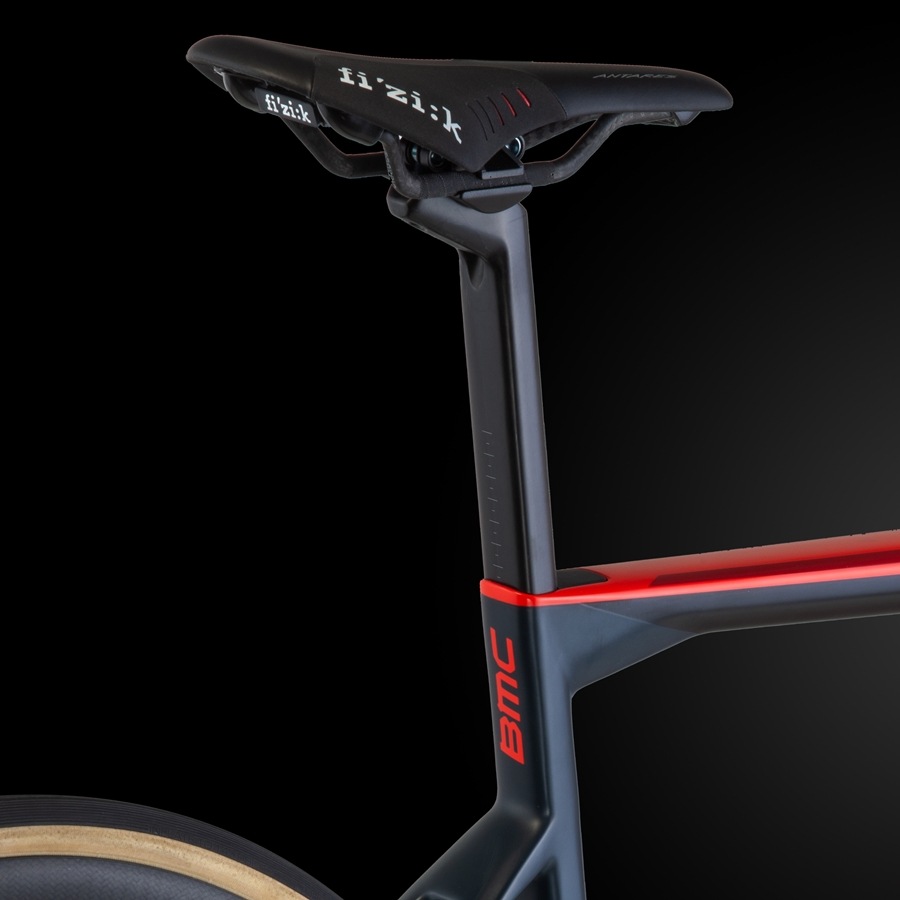

D-Shaped Seat Post : หลักอานรูปทรงตัว  มีน้ำหนักเบา แข็งแรง ให้ความรู้สึกนุ่มนวลในขณะขับขี่
No Gap Seat Clamp : จุดล็อคหลักอานแบบซ่อนพิเศษ ให้ประสิทธิภาพการยึดจับ สำหรับขับขี่ระยะยาว

SLR02 DISC 2020-4

SLR02 DISC 2020-5

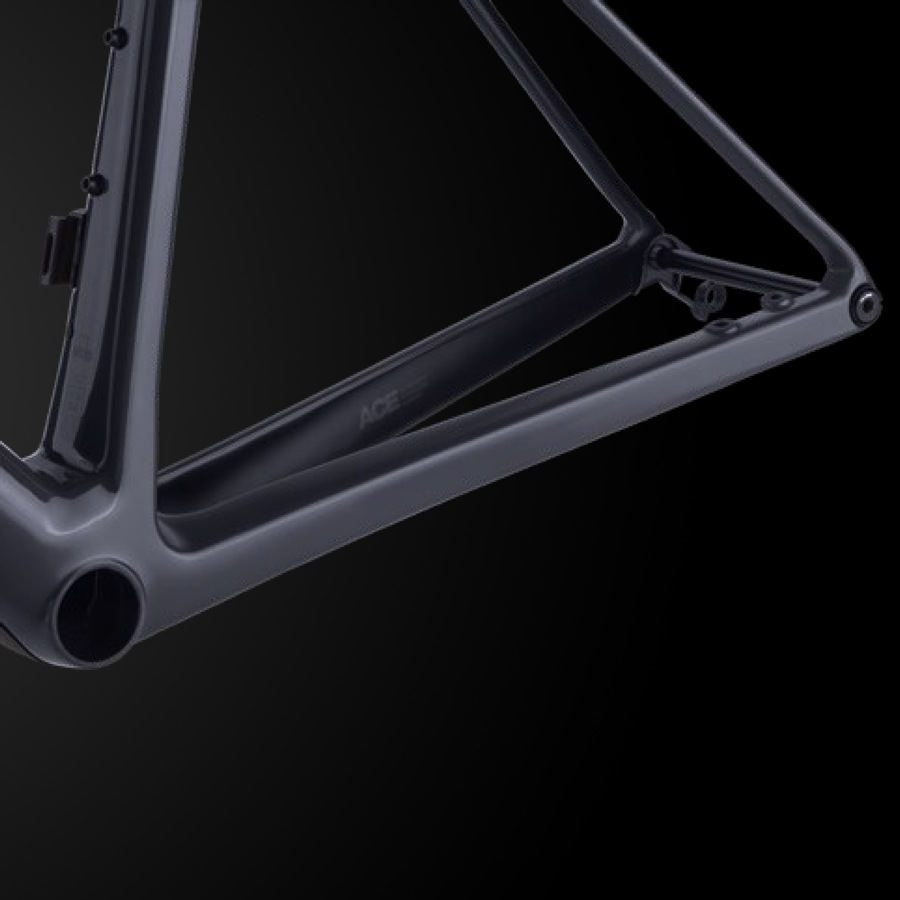

Asymmetric Tube Design : รูปทรงของท่อถูกดีไซน์ให้มีความสมดุล แข็งแรง ทนต่อแรงบิดตัวได้ดีในขณะขับขี่

SLR02 DISC 2020-6

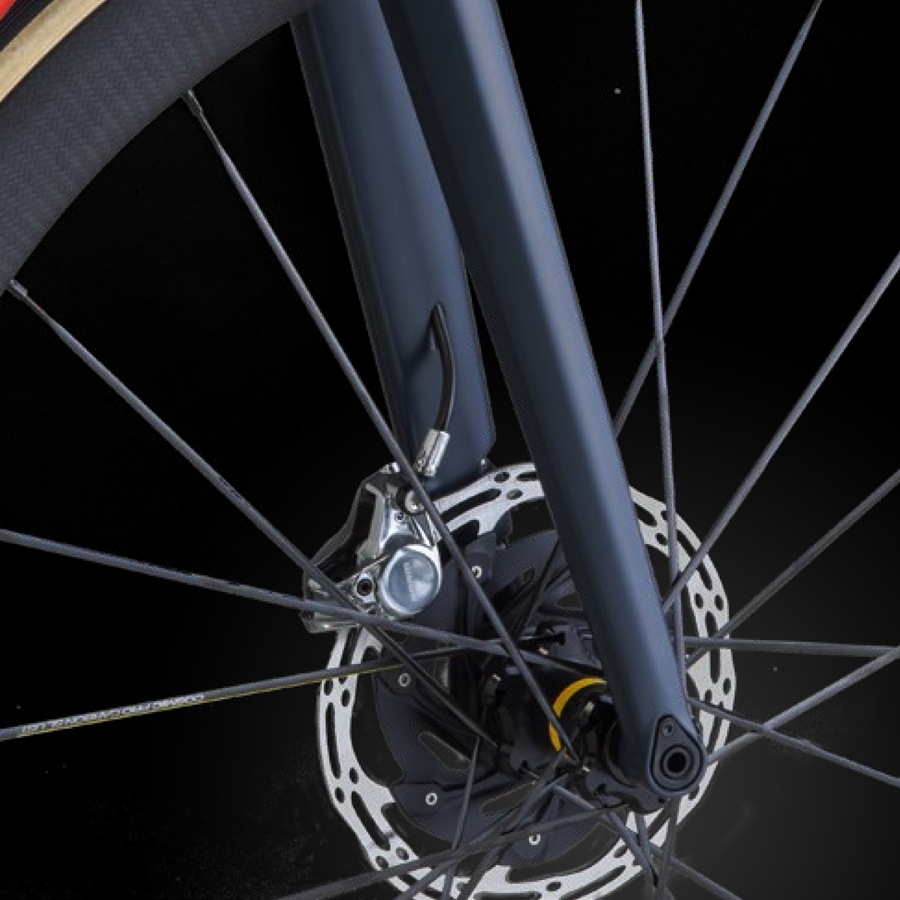

Flat mount : จุดยึดดิสก์แบบ Flat mount ขนาดกระทัดรัด ให้น้ำหนักเบา

SLR02 DISC 2020-7

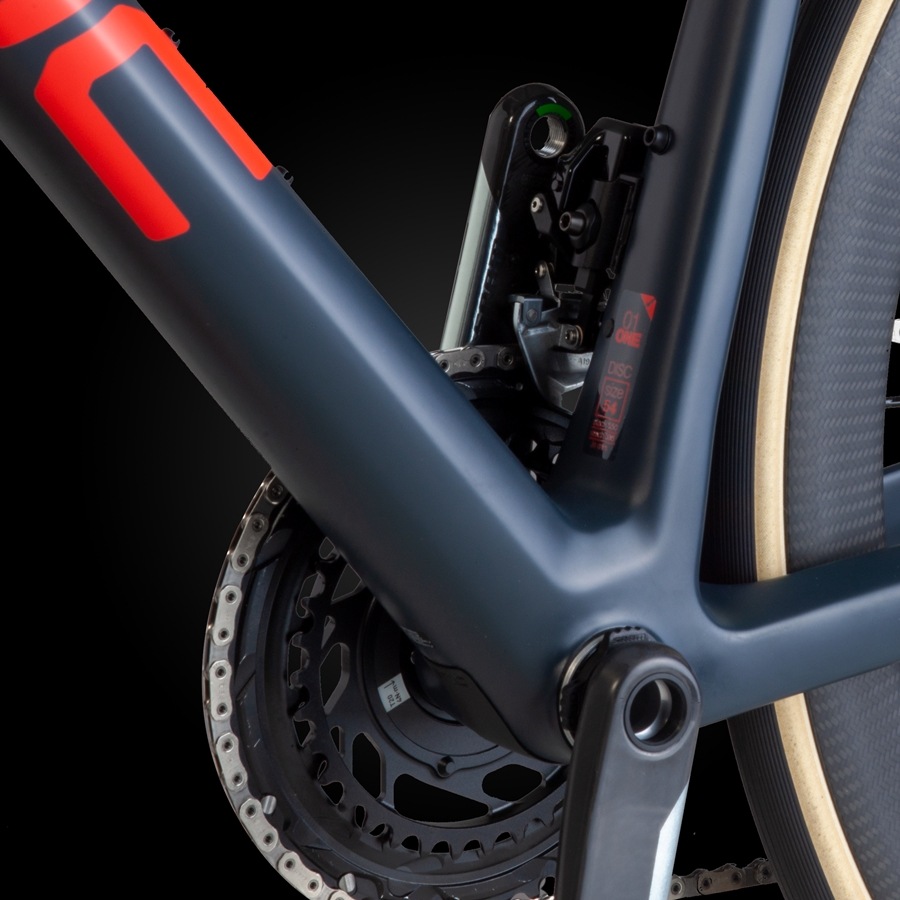

Core Stiffness : บริเวณกะโหลก ถูกปรับให้มีความสติฟท์ทนต่อแรงบิดมากขึ้น ช่วยให้ผู้ปั่นสามารถส่งกำลังแรงได้อย่างเต็มศักยภาพ

SLR02 DISC 2020-8

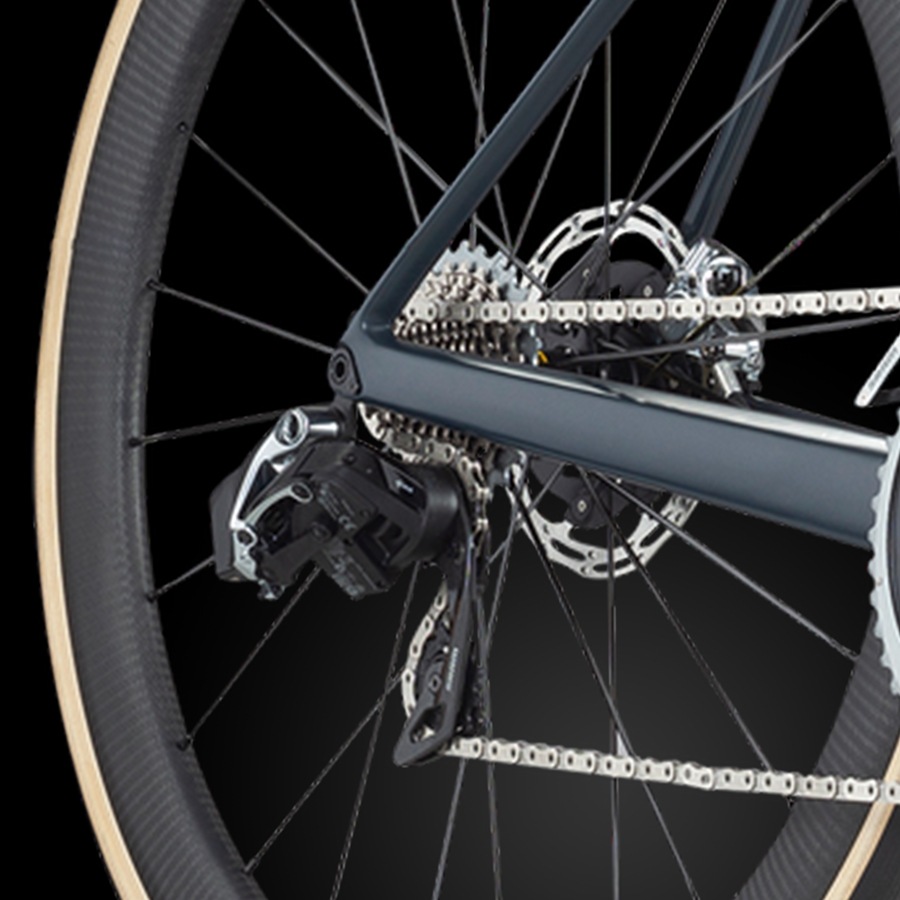

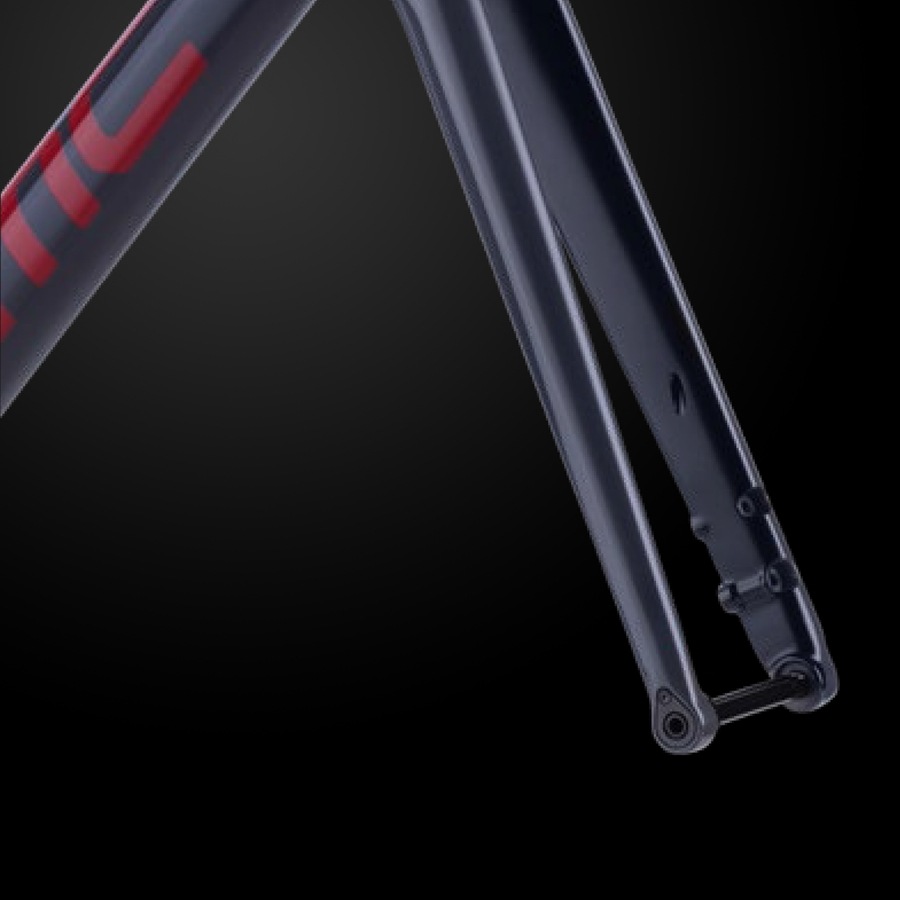

light Thru-Axle Design : แกนปลด Thru-Axle และจุดยึดตีนผีแบบคู่ ถูกออกแบบให้มีน้ำหนักเบา


Specifications

Frame

Teammachine SLR02, PF86 Bottom Bracket, Flat Mount,

12x142mm Thru axle

Tubing

02 Carbon, ACE Technology, TCC

Size

47 / 51 / 54 / 56 / 58 / 61

Fork

Teammachine SLR02 Carbon Disc, TCC Race, Flat Mount,

12x100mm Thru axle

Gear

2x11

Chainwheel

Shimano FC-RS510, 50-34T

Cassette

Shimano 105, 11-32T

Chain

Shimano 105

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105

Shifter

Shimano 105

Brake

Shimano 105, SM-RT70 Rotors (160/140)

Handlebar

BMC RAB 02, ergo top shape Cabon, compact bend

Stem

BMC RSM 01, w/ computer and camera mount

Seatpost

Teammachine SLR02 D-Shape Carbon, 15mm offset

Seat

Fizik Antares R7, manganese

Hubs

Shimano RS-170, Thru axle

Rims

Shimano RS-170

Tyres

Vittoria Rubino, 25mm

Color

Note

Super Red & Carbon

Tubeless Ready (Rim strip installed, valves included)

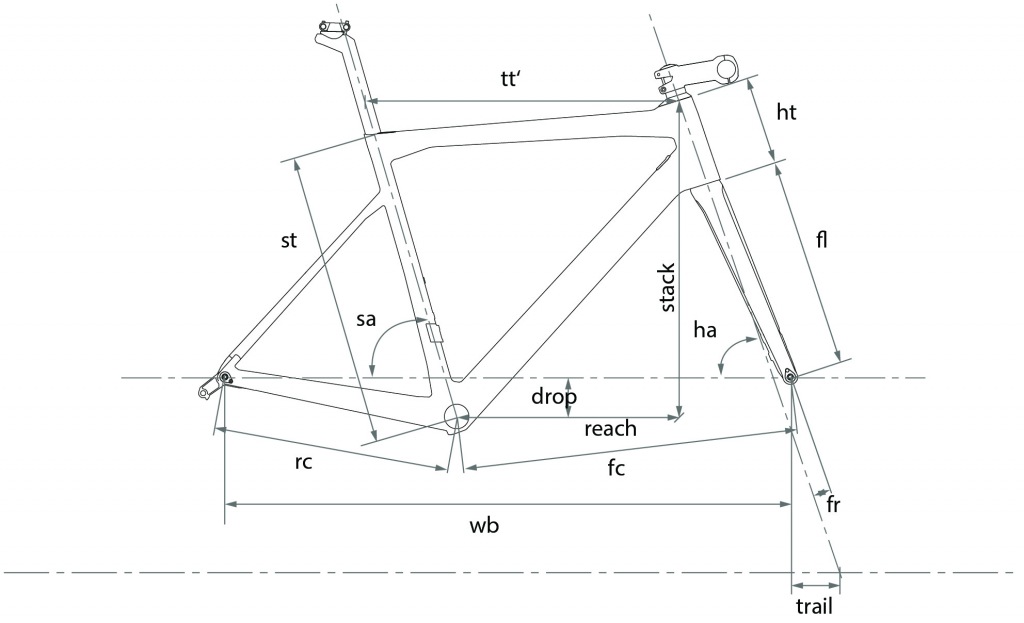

Geometry

BMC20 SLR02 Disc Four Geo

SIZE

47

51

54

56

58

61


Top Tube MM

517

535

550

560

575

590

Wheelbase MM

970

975

986

996

1012

1027

Seat Angle

73.5

73.5

73.5

73.5

73.5

73.5

Seatpost Length MM

300

300

330

330

330

330

Stack MM

506

530

550

565

584

608

Trail MM

76

66

63

63

63

63

Rider Height CM

<166

166-174

172-180

178-186

184-192

>190

Rear Center MM

410

410

410

410

410

410

Reach MM

367

377

386

392

401

409

Head Tube MM

113

113

153

168

188

213

Head Angle

70.5

72

72.5

72.5

72.5

72.5

BB Drop MM

69

69

69

69

69

69

Stem Length MM

90

100

110

120

120

120

Seat Tube MM

423

468

513

534

554

584

Stem Angle

± 8

± 8

± 8

± 8

± 8

± 8

Post Offset MM

15

15

15

15

15

15

Rear Travel

410

410

410

410

410

410

Crank Length MM

170

170

172.5

172.5

172.5

175

Fork Rake MM

41.6

41.6

41.6

41.6

41.6

41.6

Front Center MM

570

575

587

596

611

627

Fork Length MM

365

365

365

365

365

365

Bar Rise MM

77

77

77

77

77

77

Bar Width MM

400

420

420

420

440

440

Bar Drop MM

123

123

123

123

123

123
